Need help identifying cracked SMD component on Sonos Arc power supply board (location marked)

  • February 3, 2026
  • 0 replies
  • 5 views

Hi everyone,

I’m repairing a Sonos Arc power supply board and could use help identifying one damaged SMD component.

So far I have:

  • Replaced the main IC (marked 1342BHDGD)

  • Replaced the resistor in the yellow box – that one was readable at 24.9 Ω and had a burn mark.

However, the component marked in red is physically cracked and has no visible markings.

  • In-circuit it measured around 2.09 kΩ,

  • Out of circuit it measures open (OL), so it’s definitely failed.

I’ve attached:

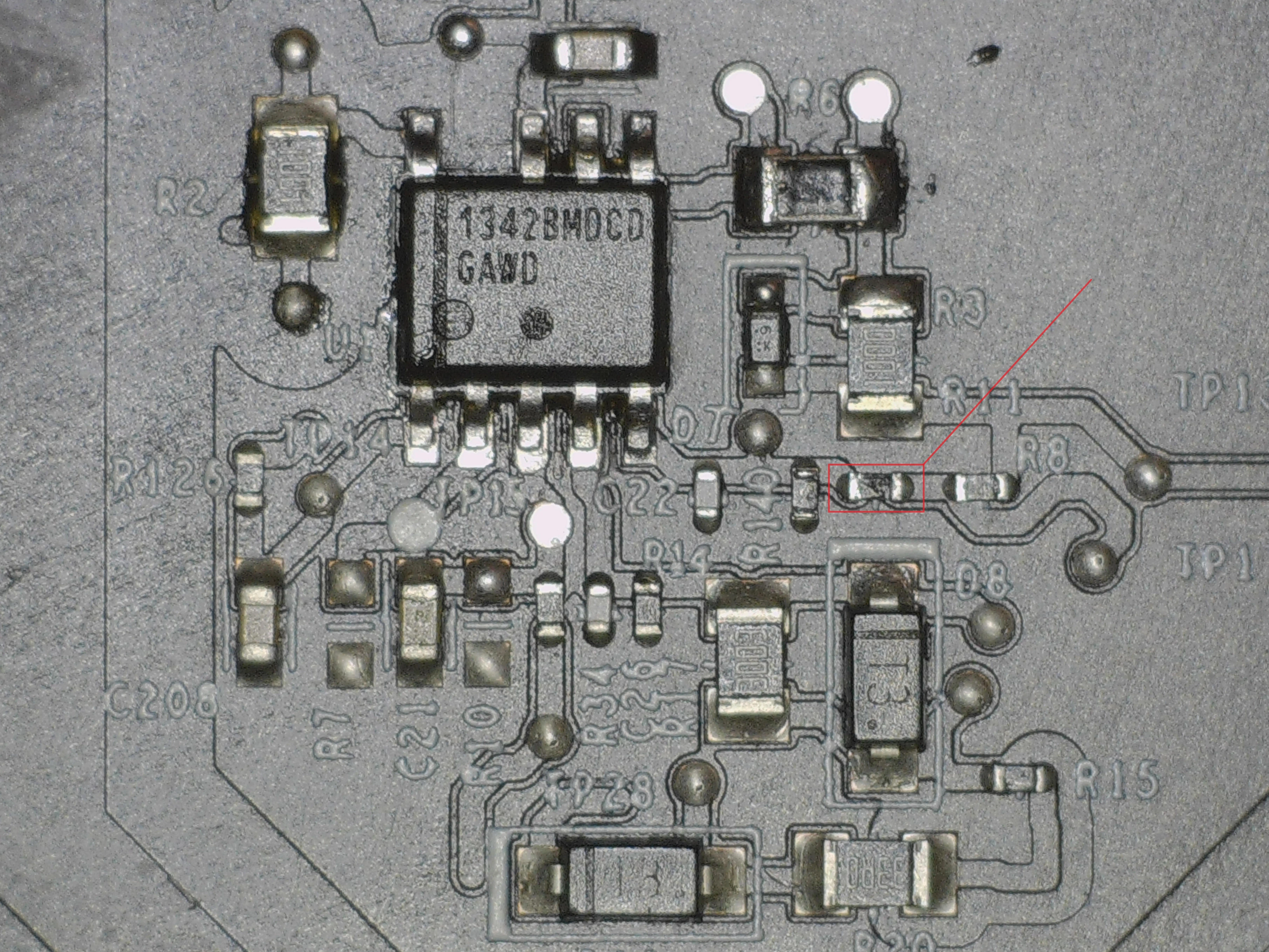

  1. A close-up photo with the damaged part highlighted in red

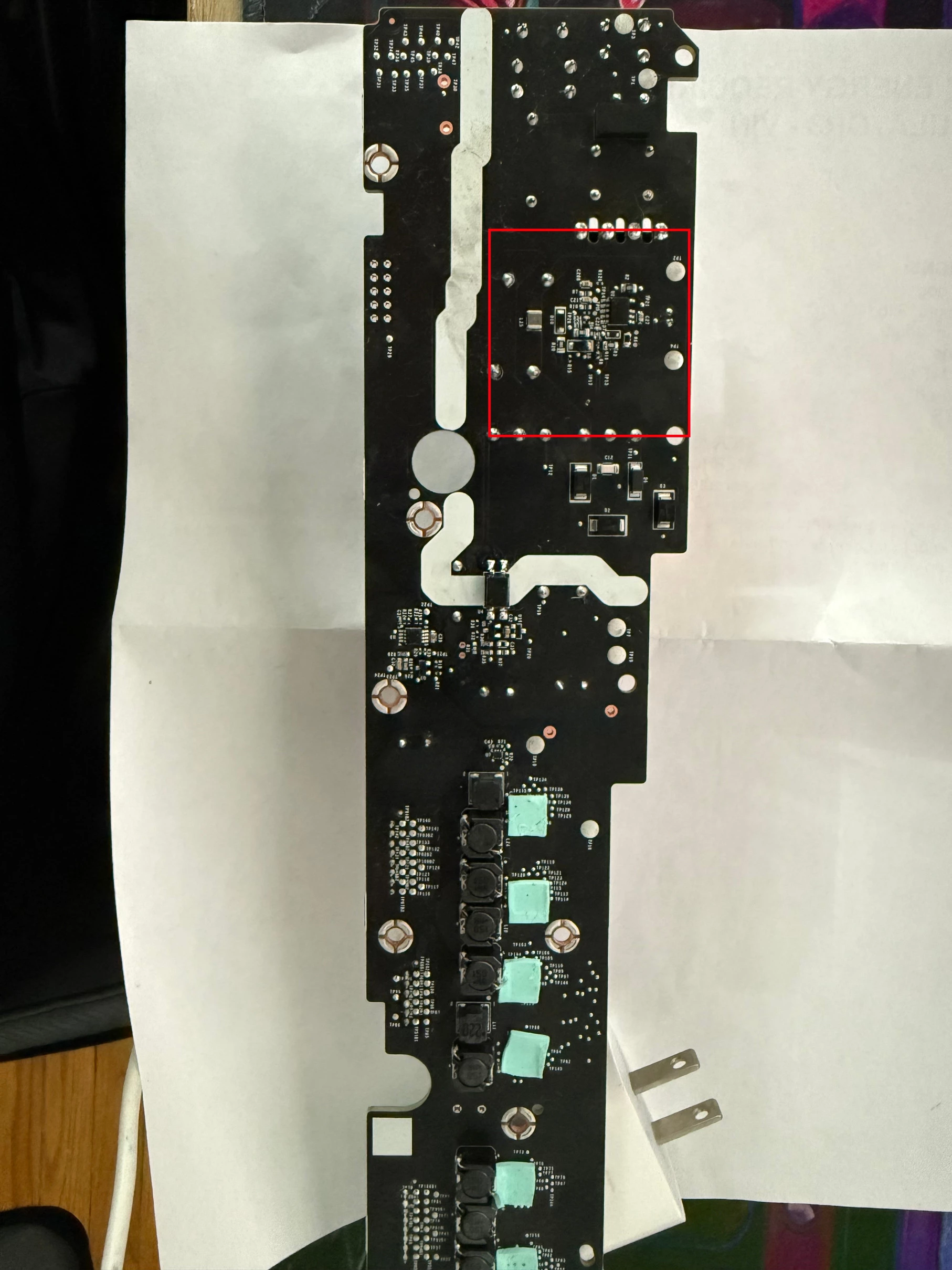

  2. A wider photo showing its exact location on the board

If anyone has:

  • A schematic

  • A known good board to measure

  • Or experience repairing this Arc PSU

I’d really appreciate knowing:
• The correct value and type (resistor? bead?)
• Package size
• Any recommended replacement part numbers

Thanks in advance for any help!
