SPDIF connection to Ray

I am trying to connect a Ray soundbar to a relatively old TV.

The TV has an SPDIF Out. But it is not working at all.

I have tried to use an optical cable which has a mini Toslink connector at one end.

Do I need to buy a separate converter?

This topic has been closed for further comments. You can use the search bar to find a similar topic, or create a new one by clicking Create Topic at the top of the page.

9 replies

nik9669a
Senior Virtuoso
January 25, 2025

I am trying to connect a Ray soundbar to a relatively old TV.

The TV has an SPDIF Out. But it is not working at all.

I have tried to use an optical cable which has a mini Toslink connector at one end.

Do I need to buy a separate converter?


SPDIF is optical so you shouldn’t need a converter.


Have you removed the end-caps from the cable?


Have you set the TV’s audio output to optical?

swimoutonthewavesAuthor
Contributor I
January 25, 2025

Hi  Thankyou.

Yes, I’ve removed end caps.


Bizarrely, there just seems to be no part of the TV menu where I’m able to select digital output.

The only option is to switch between ‘PCM’ and ‘Compressed’ on the digital output part of the sound menu. It’s really weird there is no ‘select audio output-type option.



Also, the connector into the back of the TV seems really wobbly. It’s a ‘mini toslink’, which I thought was the right one but it’s really loose!



buzz
buzz
Grand Maestro
January 25, 2025

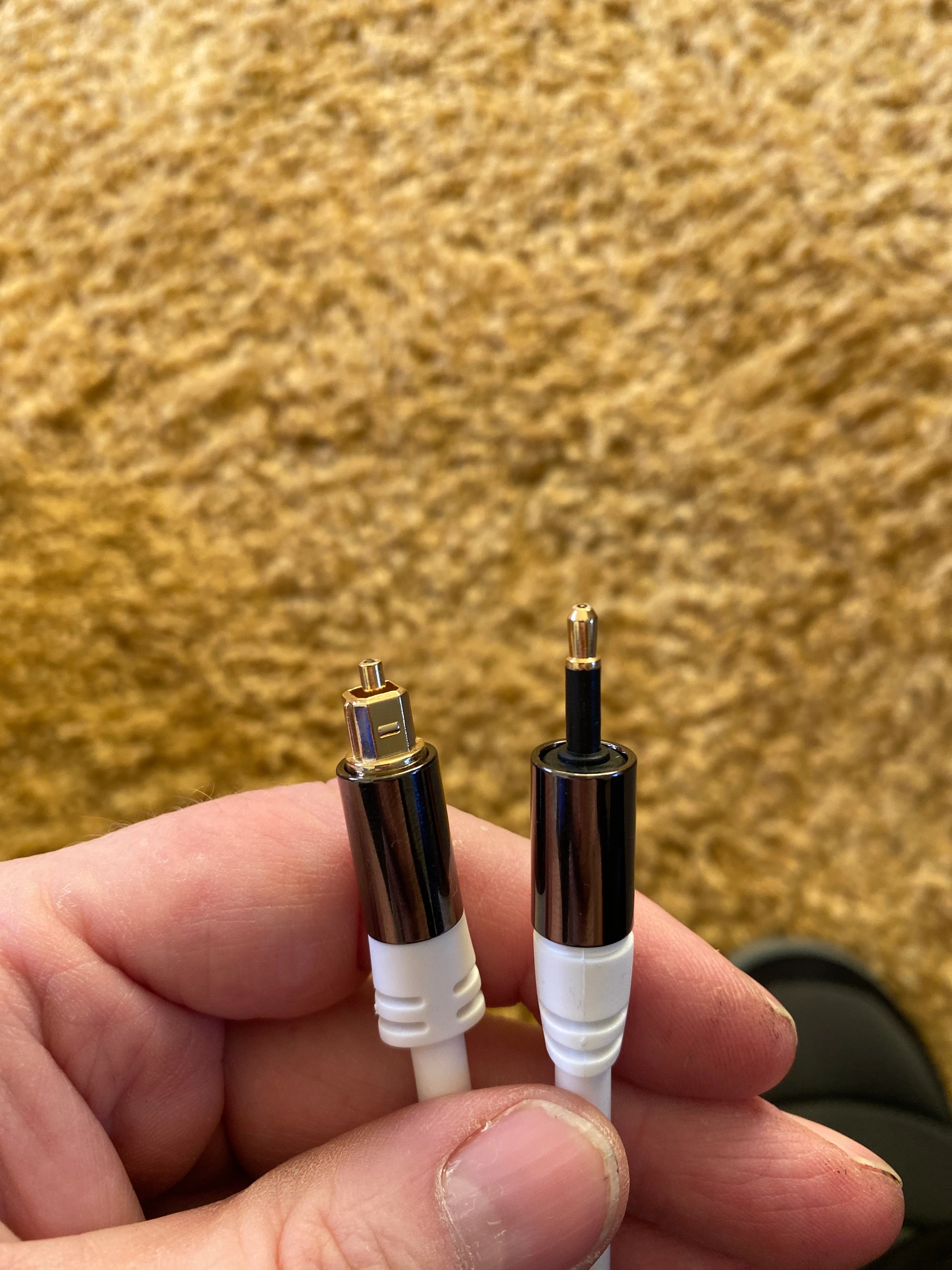

SONOS uses the connector on the left. Which model TV are you using?

Pools-3015
Pools-3015
Prodigy I
January 25, 2025

What you probably need is a cable like this one to make it work. The mini toslink will not work in a regular toslink connection.

    swimoutonthewavesAuthor
    Contributor I
    January 25, 2025

    Thanks have attached a photo of the port below.
    (So the standard optical end wont fit, it is quite an old TV).


    UPDATE have just noticed when taking the photo it is marked as Coax. So even if I can solve the connector type, I’m assuming I’ll need a converter box too?


    swimoutonthewavesAuthor
    Contributor I
    January 25, 2025

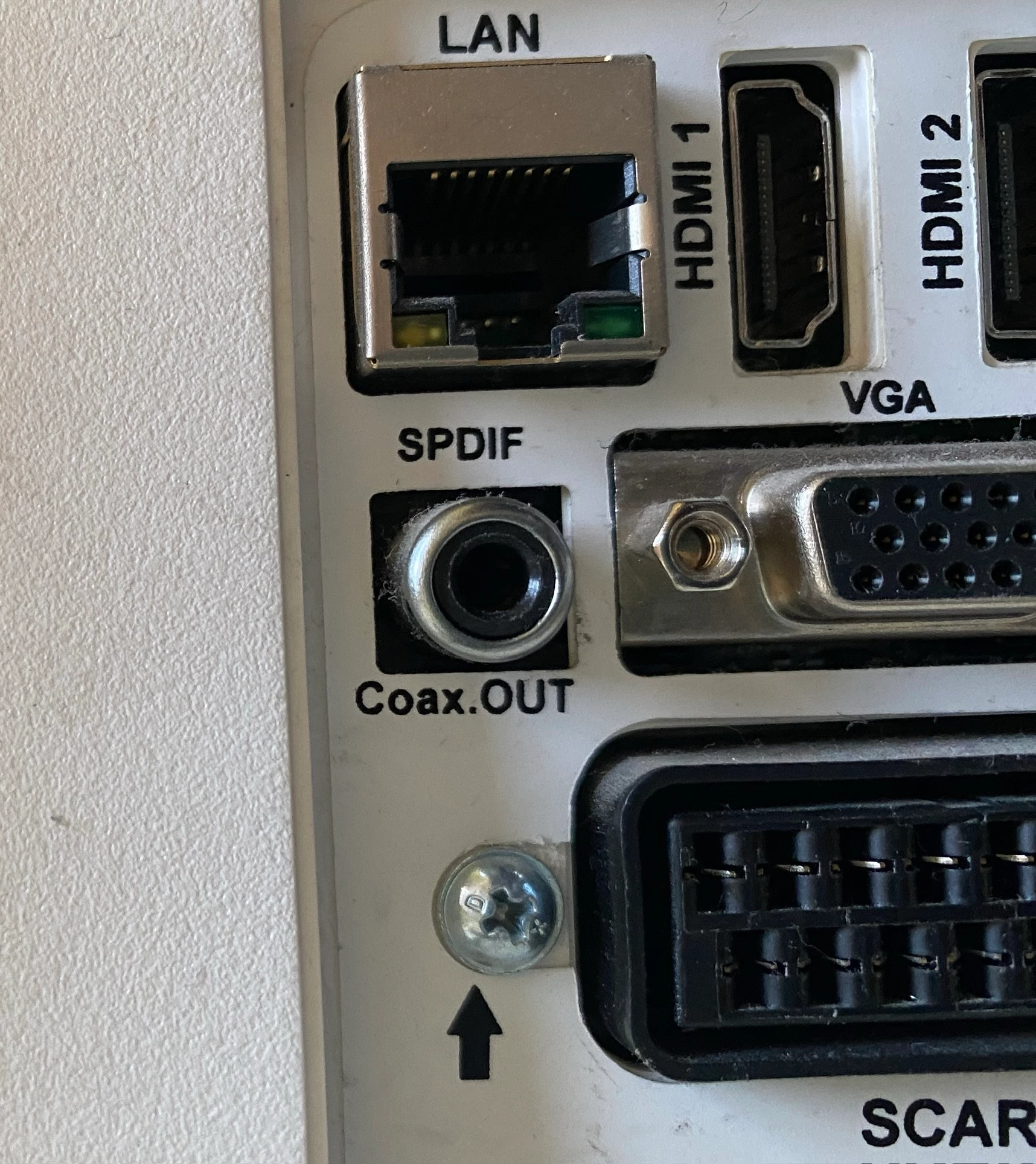

    UPDATE. sorry forgot to add the photo!

    looks like it’s a coax digital out.




    nik9669a
    Senior Virtuoso
    January 25, 2025

    I am trying to connect a Ray soundbar to a relatively old TV.

    I think it’s not going to work with that tv.


    From Sonos’ Ray overview:

    Works with your TV

    Connect Ray to virtually any TV, and use your existing remote to control the sound. For a next-level gaming setup, connect your PC.

    TV or PC must have optical output.



      buzz
      buzz
      Grand Maestro
      January 25, 2025

      Maybe this converter will be productive.

        swimoutonthewavesAuthor
        Contributor I
        January 25, 2025

        Thanks for the replies.
        I am going to have a go at using a digital coax to optical converter.
        Having looked (and tried a standard rca plug for size) I have worked out I was using the wrong connector. But will need to use a digital coax cable to a converter to get to a standard optical cable. Fingers crossed.
