T-S Measurement for Sonos Play 5 Woofer

Here is the T-S parameters for those thicc play 5 woofers. This is for yall DIY lovers :)

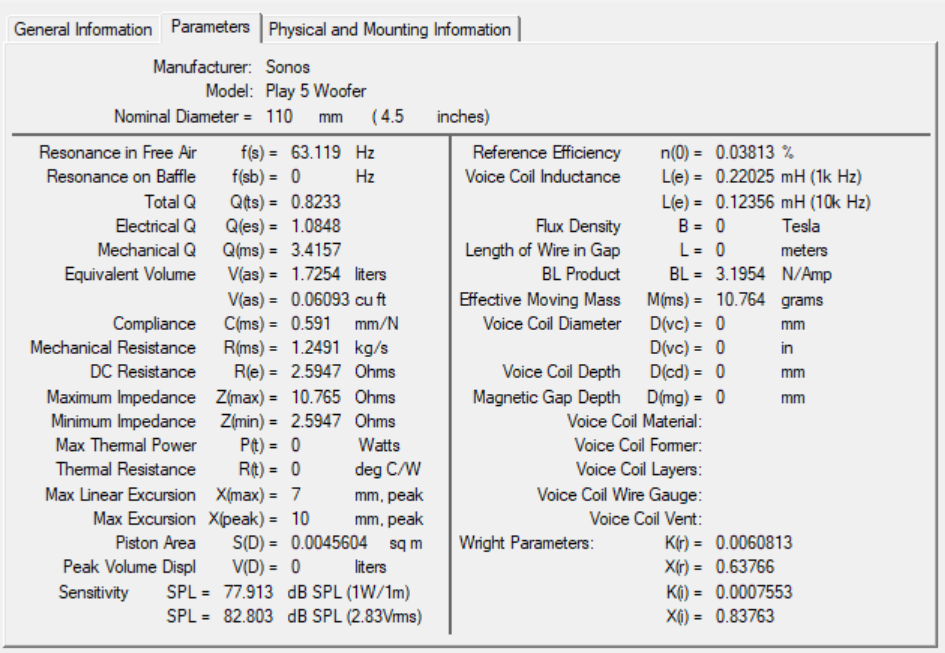

Parameters

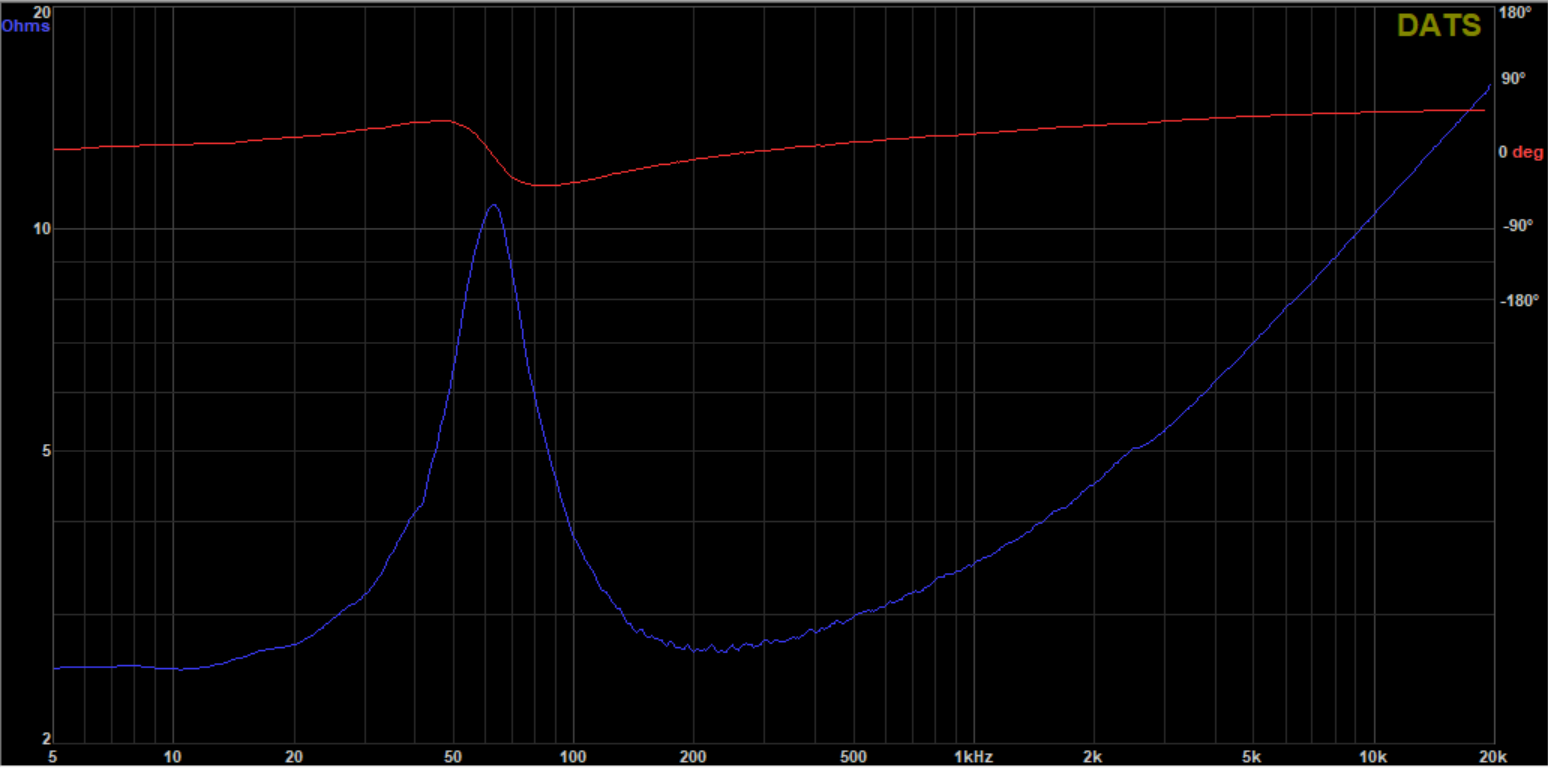

Impedance Curve

There are three of these in a sealed box of approx. 490 cu in. Data is measured in DATS v3



lol

This topic has been closed for further comments. You can use the search bar to find a similar topic, or create a new one by clicking Create Topic at the top of the page.

1 reply

Contributor I
February 15, 2025

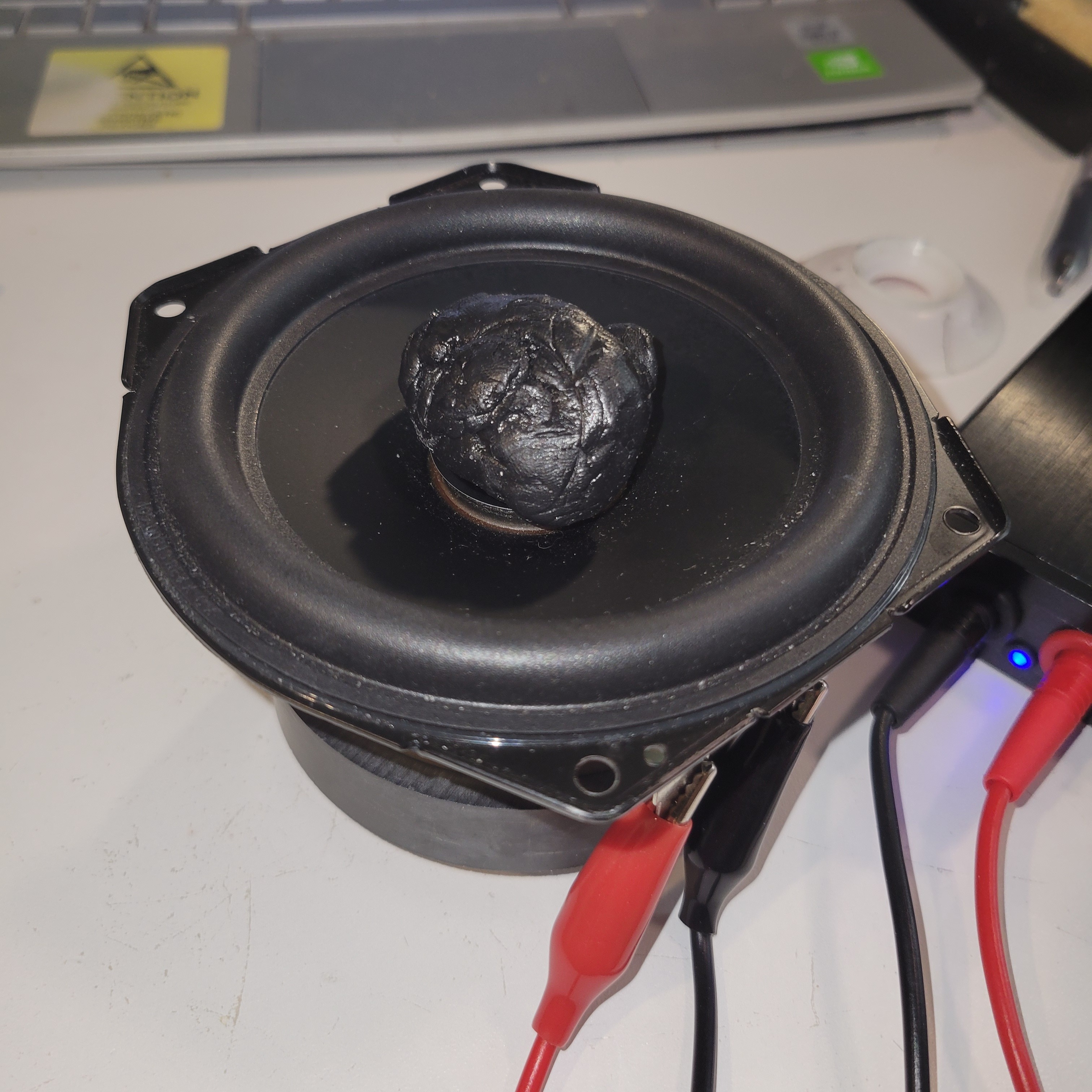

Just clarifying that these are used in gen2 Play:5s and the newer Five. Measured using the added mass method.
